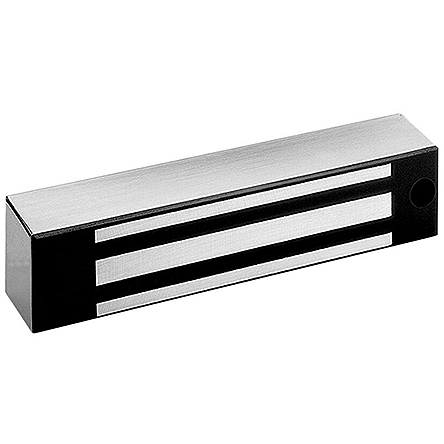

Securitron M32F 32 Magnetic Lock Face Drilled

Securitron M32F600 lbs. holding force Magnalock with automatic dual voltage. Recommended for applications where physical assault on the door isn't expected, like access controlled interior rooms and secure areas within buildings.CLICK HERE FOR Securitron-M32F-specifications.pdfProduct FeaturesPatented instant release circuit – no residual magnetismSurface mounts easily with a minimum of toolsFully sealed electronics – tamper proof and weatherproofMounted using steel machine screws into blind finishing nutsArchitectural brushed stainless steel finish (US32D/630)All ferrous metal surfaces plated to MIL specificationHardware accessories available to configure any openingDress Covers availableTen feet [3.05m] of jacketed, stranded conductorLock options include BondSTAT magnetic bond sensor and integrated door position switchUL ListedMagnaCarelifetime replacement, no fault warrantySpecification DataHolding Force: 600 lbs. [272 kg]Current Draw and Voltage: 300mA at 12VDC; 150mA at 24VDCOperating Temperature: -40 to +140F [-40 to +60C]Shipping Weight:6 lbs
