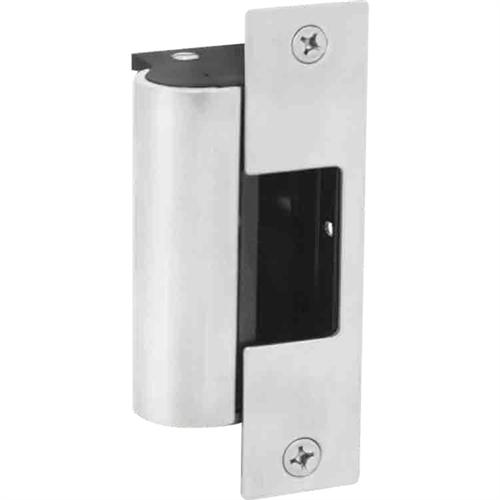

Hanchett Entry Systems SB:106-12/24D-630 Strike Body

Hanchett Entry Systems SB:106-12/24D-630 -The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enablingt to exceed every standard developed for electric strikes. With multiple faceplate options, 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8 inches strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, 1006 is in a class of its own.CLICK HERE FOR Hanchett-SB-106-12-24D-630-specifications.pdfSpecificationsUL 10C fire-rated, 3 hour single door(fail secure only)UL 10C fire-rated, 1-1/2 hour double door (fail secure only)CAN4-S104(ULC-S104) fire door conformantANSI A250.13-2003 windstorm listedUL 1034 burglary-resistant listed and suitable for outdoor useUL 295 (6th Edition) listedANSI/BHMA A156.31, Grade 1NFPA-252 fire door conformantASTM-E152 fire door conformantMEA New York City acceptedFlorida Building Code approvedPatents #6,021,038 & 6,595,564, 9,183,976 & 9,449,747Frame applicationMetalWoodElectrical.45 Amps at 12VDC* continuous duty.25 Amps at 24VDC* continuous duty*Note: DC must be well filtered with ripple less than 1 volt RMS.Standard FeaturesStainless steel constructionTamper resistantStatic strength 3070 lbs. (fail secure)Dynamic strength 350 ft-lbs. (fail secure)Endurance 1,000,000 cyclesFail secure (standard)Dual voltage 12 or 24VDC continuous dutyNon-handedInternally mounted solenoidAccommodates up to 1″ deadboltPlug-in connectorFull keeper shims for horizontal adjustmentTrim enhancerFive year limited warranty
