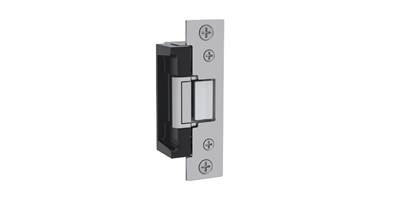

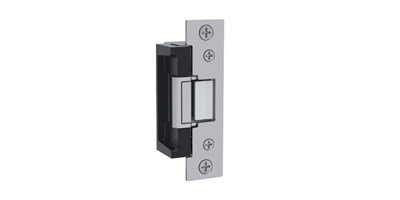

Hanchett Entry Systems 5000C 5000 Complete

Hanchett Entry Systems 5000C is a compact, high-performance electric strikedesigned for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enables the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure fail safe unit is easy to install and accommodates latchbolts up to 5/8″ throw.CLICK HERE FOR Hanchett-5000C-specifications.pdfSpecificationsUL 1034 burglary-resistant listed and suitable for outdoor useUL 294 (6th Edition) listedANSI/BHMA A156.31, Grade 1MEA New York City acceptedPatent #5,934,720Frame applicationMetalWoodElectrical.24 Amps at 12 VDC/VAC.12 Amps at 24 VDC/VACDC continuous duty/AC intermittent duty onlyStandard FeaturesTamper resistantStatic strength 1,500 lbs.Dynamic strength 70 ft-lbs.Endurance 500,000 cyclesField selectable fail secure/ fail safeDual voltage 12 or 24 VDC/VACNon-handedInternally mounted solenoidAccommodates 1/2″ – 5/8″ latchbolt (5/8″ with 1/8″ door gap)Strike body depth 1-1/16″Plug-in connectorTrim enhancer includedFive year limited warrantyOptional FeaturesLBM – Latchbolt monitorFinishes630 – Satin stainless steel605 – Bright brass606 – Satin brass612 – Satin bronze613 – Bronze toned629 – Bright stainless steelBLK – Black
